Posted 19 May 2014 - 11:31 PM

So it begins

Silverstone TJ08-EW arrived today and is now stripped
Looks like i will have to cut some holes in the bottom so the top ports on the phobya 200mm rad can drop through since they poke it up just high enough to be obstructed by the front usb ports which will provide a handy bonus making the loop easy to drain
Most dont have to do this as they just mount the rad onto the fan where as i will be bolting the rad to the case then the fan on the inside

Looks like im all out of cutting disks though so i am going to have to try find some so i dont have to resort to the angle grinder for such small holes it would make a bit of a mess even if it is just the under side of the case

Posted Image

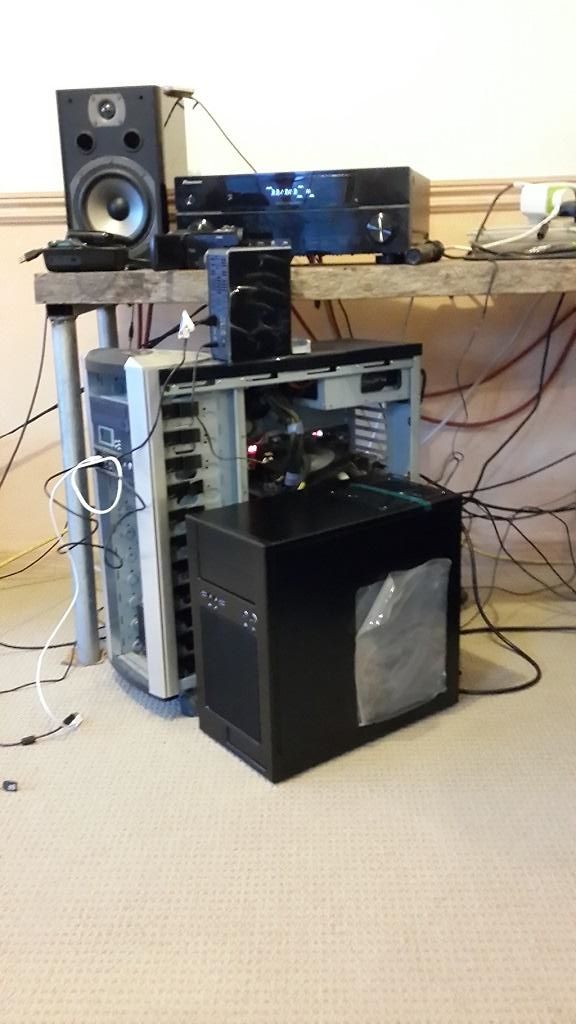

Just a bit smaller than the 10 year old CM Stacker (STC-T01)
Sorry for the phone snap i will make sure photos from here on are better quality

Ok pinched my sisters d300
Posted Image
Posted Image
Posted Image

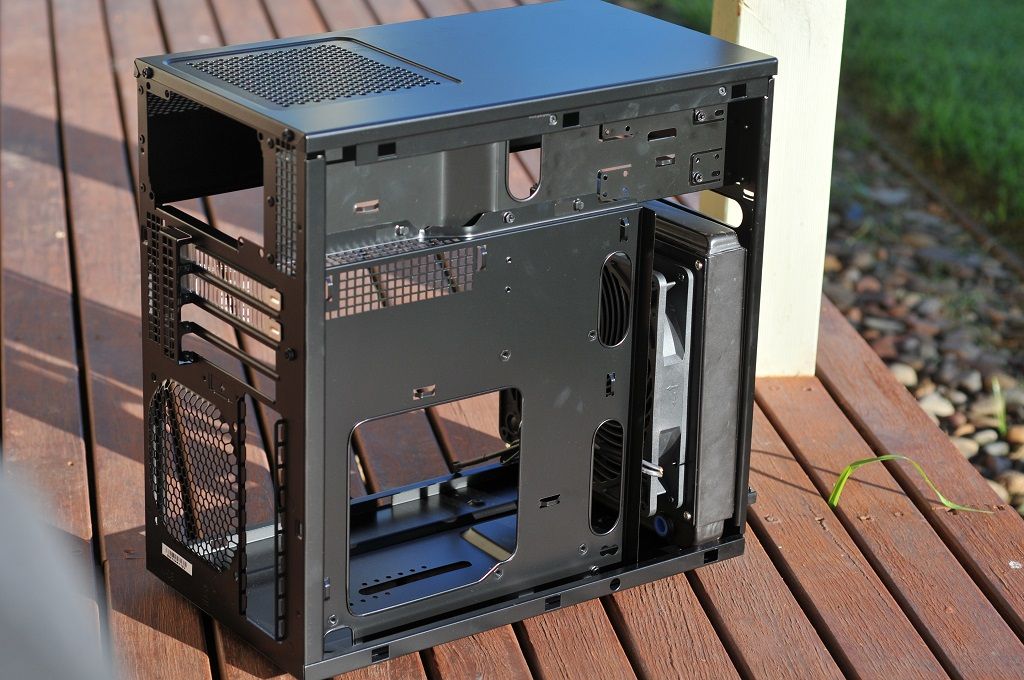

This is where i will be drilling some holes for the rad bungs to poke through
Posted Image

shes so sexy i keep coming back here just to look at my naked little darkling

Edited by Dasa, 20 May 2014 - 11:56 PM.

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#2 Master_Scythe

Master_Scythe

    Titan

  • Hero
  • 19,953 posts
  • Location:QLD

Posted 20 May 2014 - 09:02 AM

mmmmm stacker

Wherever you go in life, watch out for Scythe, the tackling IT support guy.

"I don't care what race you are, not one f*cking bit, if you want to be seen as a good people, you go in there and you f*ck up the people who (unofficially) represent you in a negative light!"


#3 Oracle X

Oracle X

    Guru

  • Hero
  • 12,128 posts
  • Location:In His Pants

Posted 20 May 2014 - 10:25 AM

lol real classy shots bro, I can just picture a bunch of rich snobs sitting outside their country mansion sipping champaign and talking about CPU cooling... if that's the sort of thing they're into.
You don't have to rely on other people if you never miss.

#4 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 20 May 2014 - 06:00 PM

Spent a fair bit of time hacking the shit out of the bottom of the case with the tools available im afraid its a bit of a mess but at least i wont be looking under the case

Pinched in the rolled edge sides of the case with some pliers so the rad has room to slide all the way forward
Just have to cut off most the front clip from the side panels with the angle grinder so they can go back on Edit: scratch that i should be able to just fold it over flat
Then make a few more holes for hose to exit the rear of the case

Hopefully the front of the side panels wont bow out to much when its done

edit pics!
rad poking through
Posted Image
crimped side to squeeze in rad
Posted Image

Edited by Dasa, 30 May 2014 - 10:36 AM.

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#5 gamble

gamble

    Primarch

  • Atomican
  • 1,338 posts

Posted 21 May 2014 - 02:09 PM

looks to be coming together nicely. Cant believe the size diff from the old to the new case lol

HAF 912 | Biostar x370GT7 | 1700x @ ? | ASUS Turbo GTX1070 2ghz | EVGA RAM 3200 @ ?  | EK Watercooled CPU | EVGA G2 1300W


#6 nobody813

nobody813

    Champion

  • Atomican
  • 6,533 posts
  • Location:Tasmania

Posted 21 May 2014 - 05:14 PM

Nice! Is a wicked little case to start with, and is epic to see what can be done with it :-) I think I'll keep my NAS (same case) stock though haha

"Nobody, including Nobody, knows what Nobody is doing..." - millen



Intel Core i5 4670K | ASRock Z97 Extreme4 | 16GB G.Skill Ares DDR3 | EVGA GTX 980 Superclocked ACX 2.0 4GB | Cogage Arrow | 500GB Samsung 850 Evo | 2TB & 1TB Seagate 7200.14's | Corsair RM650i | Fractal Design Arc Midi


#7 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 22 May 2014 - 09:28 AM

well the side panels fit again
unfortunately the window panel took a little damage and has some small dings where i adjusted it with the hammer
the rear panel has a bit of a crease but i actually dont mind how that looks
it could be improved with more hammer but probably at the cost of the paint which i cant be bothered redoing at the moment

the qdc and fill port also arrived
next is to make a hole in the top for the fill port and some holes in the rear to head through to the qdc which are 1/2" compression so i will be using three tube sizes in this build with 7/16" behind the mb tray and 3/8" internal
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Edited by Dasa, 22 May 2014 - 09:32 AM.

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#8 Master_Scythe

Master_Scythe

    Titan

  • Hero
  • 19,953 posts
  • Location:QLD

Posted 22 May 2014 - 09:59 AM

That damaged side panel asks for some Carbon Fiber vinyl to hide the defects :)

Wherever you go in life, watch out for Scythe, the tackling IT support guy.

"I don't care what race you are, not one f*cking bit, if you want to be seen as a good people, you go in there and you f*ck up the people who (unofficially) represent you in a negative light!"


#9 Director

Director

    Immortal

  • Hero
  • 40,460 posts

Posted 22 May 2014 - 01:13 PM

Nice job! :)

"The most powerful tool in the hand of the opressor is the mind of the opressed."-- Steve Biko

Those Who Dance Are Considered Insane by Those Who Can’t Hear the Music.


#10 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 22 May 2014 - 05:22 PM

didnt have any time or energy to work on it today im afraid hopefully the bits to make the 180 bend between the cpu\gpu will arrive from thekoolroom tomorrow and i should have everything i need to finish it there marked as delivered to bendigo by the courier which means they should make the last 100k of the journey with auspost which can take 1-2 days so it may not be here till monday im not sure how best to go about making holes in the rear mesh for pipes to go through maybe i can get tin snips in there and then grind it out now that i have some new larger grinders for the drill

Edited by Dasa, 22 May 2014 - 05:36 PM.

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#11 cohmoddersolo

cohmoddersolo

    Master

  • Atomican
  • 658 posts
  • Location:NT

Posted 22 May 2014 - 07:17 PM

Damn dasa... If only I was a suburb away from you Id snatch that old case of yours if you're retiring it. That inverted motherboard orientation is like a rarity these days... Best of luck with your build!
Disco Bench 3820, RIVE, 3x2GB 1333Mhz CL9, Palit GTX580, 256GB OS SSD, 2x500GB RAID0 Dump Drive, Seasonic 1200w Platinum, CM HAF X


#12 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 23 May 2014 - 06:15 PM

well the snake arrived and it might be touch and go weather or not the side panel fits on with it totaling 78mm
the snake has ~12-16mm of inner room and the enzotech m to m fitting is also ~12mm giving me 56-60mm of room to get around the card which is way more than i needed so i may need to order a shorter extender guess ill find out soon enough
wish they provided better measurements for these parts

finished making holes today these ones took a while but actually ended up nice and neat
Posted Image
Posted Image
Posted Image
Posted Image

Edited by Dasa, 30 May 2014 - 10:38 AM.

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#13 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 27 May 2014 - 07:54 PM

assembly is in progress
now if only i could find that barb... after cleaning it i stopped to shift some clothes that were drying and ill be stuffed if i can work out where i sat the dam thing

mm snug fit 190mm psu (+wires) in a case that recommends 160mm and supposedly can handle a max of185mm without odd
the odd is also rather long at ~180mm i think its a pioneer bdr-203
safe to say the 8 pin eps lead out of the psu is doing a tight bend and there is a bit of pressure on the screws holding in the odd

sorry more quick phone snaps
Posted Image
Posted Image

Edited by Dasa, 30 May 2014 - 10:38 AM.

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#14 st8smn

st8smn

    Primarch

  • Atomican
  • 1,645 posts
  • Location:perth

Posted 27 May 2014 - 08:10 PM

Nice work fitting it all in there dasa, it looks awesome ! Love the dusk pics , very nice scenery/background :)


I wish for a world where a chicken can cross the road without having its motives questioned.

#15 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 27 May 2014 - 08:19 PM

yeah i set it up then let my sister take the picks since i didnt know how to work the flash settings on her camera with the sunset quickly disappearing will have to photoshop them to remove the gate\post when im done shame i killed the second 7970 although the blue pcb was kinda ugly it still would have looked good all that power crammed in there

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#16 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 28 May 2014 - 11:41 AM

some quick shots from the first power up
Posted Image
Posted Image

edit
bugger gpu block mount must be bad its hitting 65c when it should be under 40c

Edited by Dasa, 30 May 2014 - 10:39 AM.

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#17 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 29 May 2014 - 10:19 PM

cant help myself
Posted Image
Posted Image
Posted Image

Silverstone TJ08-EW 6700k@4.7 1.375v - Z170-GENE - 2x8g 3866 16-16-16 - 1070@ 2100\9600MHz  -Samsung 830 64G, Sandisk Ultra II 960G, WD Green 3tb - Seasonic XP1050 - Dell U2713 - Pioneer Todoroki 5.1 Apogee Drive II - EK VGA-HF Supreme  - Phobia 200mm Rad - Silverstone AP181 Project Darkling
3770k vs 6700k RAM Scaling, HT vs RAM, Arma III CPU vs RAM, Thief CPU vs RAM
Parts Guide


#18 Master_Scythe

Master_Scythe

    Titan

  • Hero
  • 19,953 posts
  • Location:QLD

Posted 30 May 2014 - 08:43 AM

How do you go about planning a watercooling rig? are all the barbs 'push on and tighten down' style? So its just a matter of getting the right hose size and barbs of all the same size? I want to watercool my next rig, but I need it airtight so I can transport it often.

Wherever you go in life, watch out for Scythe, the tackling IT support guy.

"I don't care what race you are, not one f*cking bit, if you want to be seen as a good people, you go in there and you f*ck up the people who (unofficially) represent you in a negative light!"


#19 gamble

gamble

    Primarch

  • Atomican
  • 1,338 posts

Posted 30 May 2014 - 10:25 AM

To get started, I went with a Ek H30 240 HFX kit. It has most everything you need to get started but still needed to add gpu block. Some go with a universal gpu block or you can get a full cover one. Kit came with compression fitting too... Add in the coolant and a few 90 degree or rotary fittings, your looking at around $400. I probably could have pieced it together with a slightly better options but really this kit is cooling everything quite well.

http://www.frozencpu...5...d&mv_pc=223

HAF 912 | Biostar x370GT7 | 1700x @ ? | ASUS Turbo GTX1070 2ghz | EVGA RAM 3200 @ ?  | EK Watercooled CPU | EVGA G2 1300W


#20 Dasa

Dasa

    Guru

  • Super Hero
  • 14,809 posts

Posted 30 May 2014 - 10:31 AM

for my first build many years ago i did a lot of research into water cooling then just dove in with a pond pump a heatercore out of a camry and a few secondhand blocks made in au
this time i just looked at what others had done in this case and tried to think of things i could do different or maybe be better suited to what i wanted
i also made a thread on ocau about the fitting on the gpu for that tight bend since i had never used anything but hose\barbs on my previous builds but didnt get a lot of help thankfully it worked out ok
http://forums.overcl...d.php?t=1129354

im using a mix of barbs and compression fittings
the secondhand pump\rad came with a bunch of 3\8" compressions and hose so i used them inside
with them you just screw one end into the component with a o-ring and push on the hose and screw them down but you must have exactly the right tube size id\od and a clean even cut even then there may be a chance of one blowing off if something goes wrong with the loop which makes the temperature rise to a high level softening the tube especially if the tube is thick walled

the rest of the fittings are barbs\clamps and if you use 7/16" hose over 1/2" barbs its so tight i have gotten away without using clamps at all so with a good clamp on it thats not going to be where you will see any leaks
